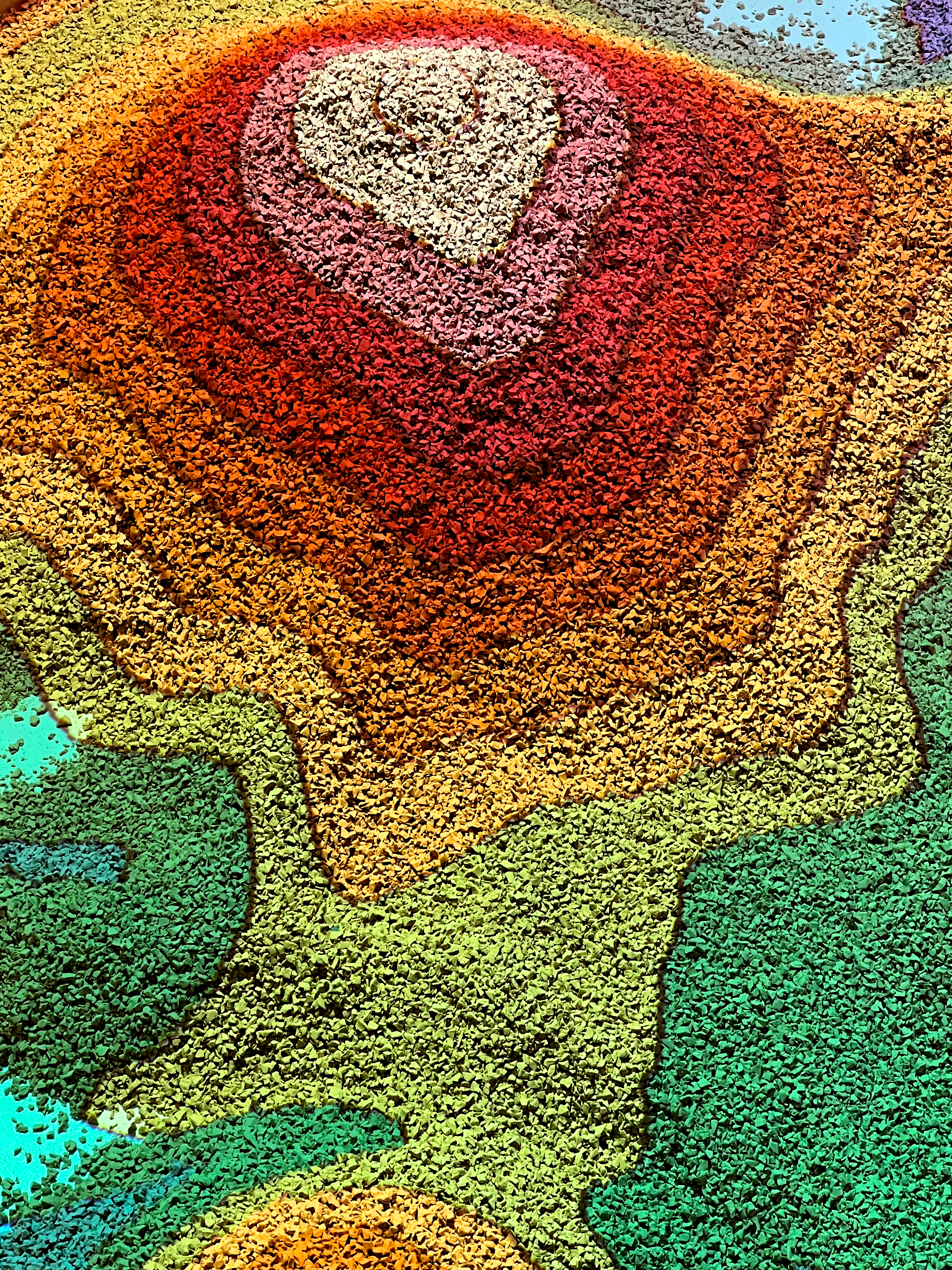

the sandbox with depth mapped projection. the highest point is white, then goes to red, orange, yellow, green, and blue as the lowest point.

where is the water is a custom augmented reality sandbox built upon SensiLab's open source Unity software that projects depth data onto the sandbox's surface. A Kinect v2 and projector are stationed above the sandbox. the Kinect detects the depth of the sandbox in real time as visitors interact with it and the projector displays the live, textured feed over the sandbox to mimic mountains and valleys, rivers and lakes, that are created by the visitors.

the interactive sandbox was customized for visitors to use a circular tool to create rainfall over the projected landscape and have a button to evaporate the accumulated rain, simulating a drought.

using opencv and c#, i developed, tested, integrated, and debugged circle tracking software to trigger rainfall.

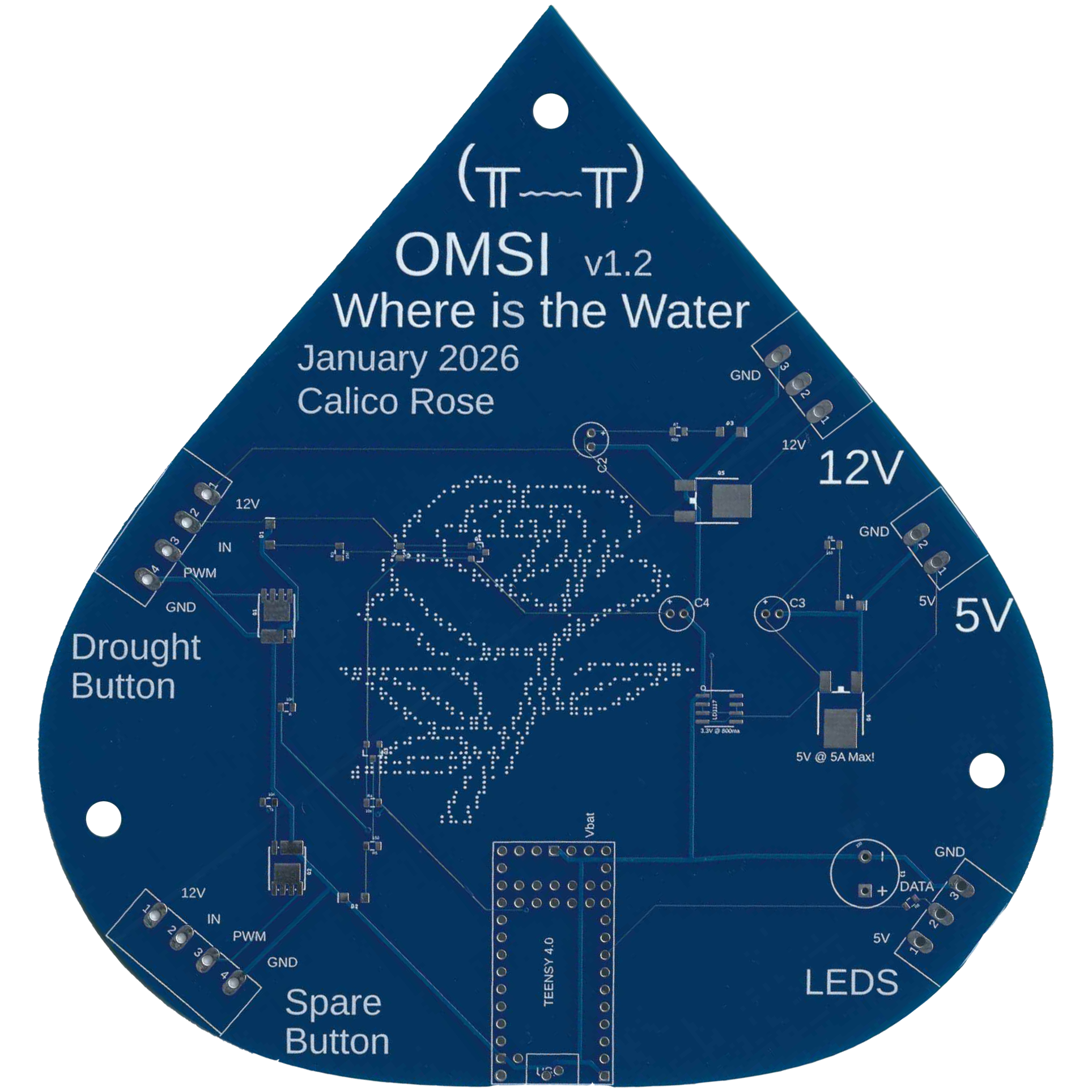

the circuit board used for where is the water, which components for two buttons, an led strip, 5v power, and 12v power.

using heavyM and spout, i mapped the projection to the custom shape of the sandbox.

using c++ and platformio, i developed the firmware for a simple button that triggered the drought.

using Autodesk Fusion, i designed and manufactured the circuit board, which included areas for an extra button and leds, in case the exhibit needed to incorporate more features in the future.

a graphic displaying a user holding a stick with a circle on the end to trigger rain over the mountain created in the augmented reality sandbox.
graphic by Lisa Cline
